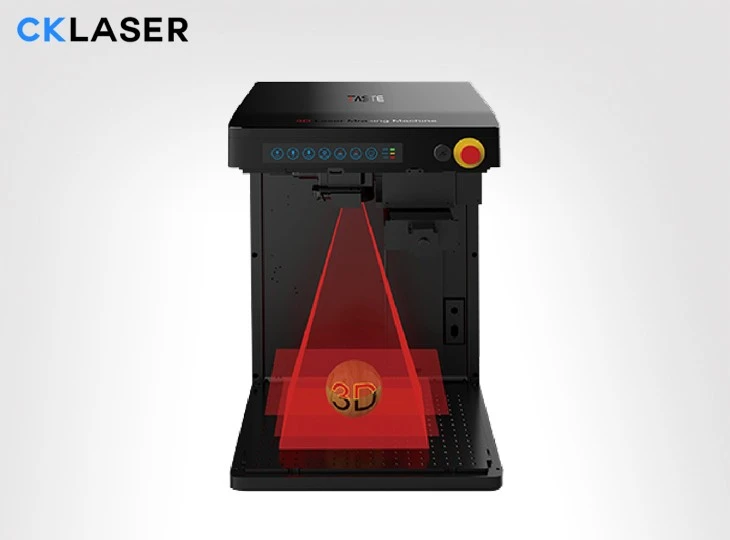

3D TASTE Laser Marking Machine

3D TASTE Laser Marking Machine using the new generation of three-axis dynamic focus control technology, it perfectly solves the engraving problems of irregular surfaces such as curved surfaces, high and low surfaces, ladders, and irregular surfaces.

Casting mold：ABS+PC material,sealed mold design to prevent dust from entering in order to extend the life span of the machine.It is a light weight design,the weight of the machine less than 50KG.

Motion control design：it adopt precise linear guide drive,with photoelectric sensor switch limit control,transmission more efficient,more compatible,stable and durable.

Removable door design：asymmetrical double door design,larger left door,to achieve quick device replacement.The door can be removed quickly,which create a new pattern of expanding functions to achieve greater processing space.

European standard desigh：casting mold machine body,compact structure design and safety protection design make the whole machine more convenient to maintain,more safe and durable,it conforms to the European manufacturing standard,with full details from design to manufacturing.

Running data monitoring functions：it is mainly made up of three functions: running data monitoring system developed based on the internet technology platform ; data acquisition and transmission. Data analysis and display . Open the APP software in phone you can intuitively see the parameters of monitored equipment.

Auto focus on centre：exclusive research, focusing control cards and algorithms equipped with high-precision CMOS sensor. High-precision one-button auto focus function can be achieved. With security, process reminder, quick use, simple maintenance, and so on.

Motorized lift：built-in film button, it can accurately perform the functions of red light positioning , servo motor lifting and horizontal movment, auto focusing, LED lighting, etc.

24V low voltage：it adopts low voltage  DC24V to control the equipment start and stop meet, European standard of low voltage start-up requirement. Compatible input voltage is AC 85-265V, frequency is 50HZ / 60HZ.

Security shutter：it adopts inductive shut-off technology, if the operator open the door when the laser is working, the shutter will be immediately shut down to effectively reduce accidental injury  by fault operation.

Protective window：prefessional protective window to watch the work of  the laser at any time.

3D software：import 3D model design and set parameter, then it can achieve precise control of 3D marking and relief engraving.

3-axis dynamic focusing system：equipped with 3-axis optical system, through move z axis mirror lens forth ang back ，to achieve the change of focal distance variably.

3D relief  funtion：it adopts 3D relief engraving feature to get  3D objects by laser stripping the layers on the object accurately.

3D marking function：taste series marking machine uses a new generation of 3-axis dynamic focusing control technology, it perfectly solve the problem to mark on the curved, step and irregular surface.

Application

Parameter
