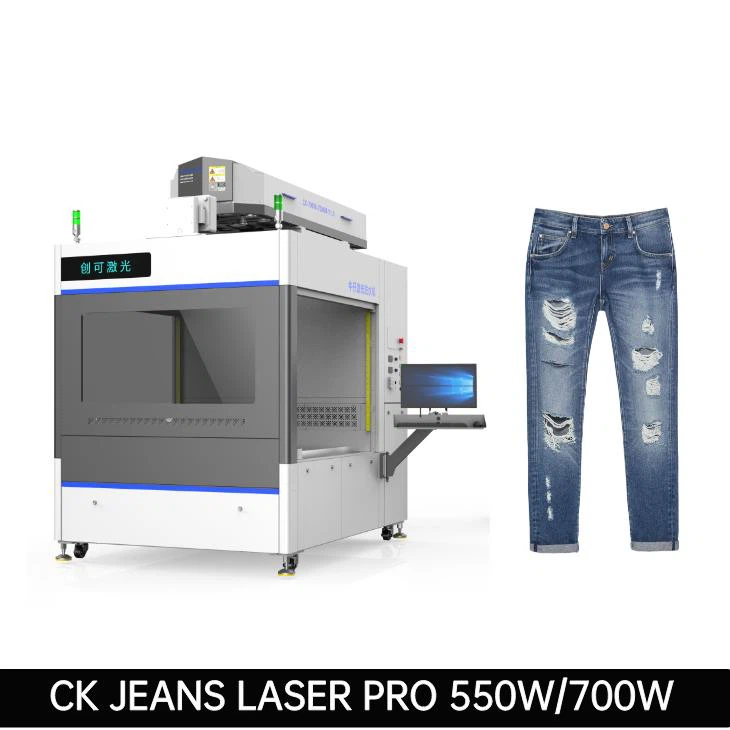

CK Denim Jeans Laser Marking Machine Pro
|
Product Details |
|
Brief Introduction |
CK Denim Jeans Laser marking machine is the cost effective solotion for denim jeans dry process like whisker, hand sand(brush), grinding, and destroyed effects. Customer can reduce the usage of water and toxic chemicals by using our laser machine.
|
Machine Specifications |
|||
|
Model |
CK Jeans Laser Pro 550 |
CK Jeans Laser Pro 700 | |
|
Laser Source |
CK CO2 RF laser source |
||
|
Laser Power |
550W |
700W | |
|
Laser Length |
10.6um |
||
|
Galvo Head |
CK Super Galvo Platform |
||
|
Positioning |
Projector/Redlight |
||
|
Work Area |
1200x1200mm |
||
|
Scanning speed |
10000mm/s |
||
|
Control Card |
CK control card |
||
|
Focusing |
3rd-axis dynamic focusing |
||
|
Control Software |
3DLaser for Jeans |
||
|
Working Voltage |
AC380V 3 phases,50/60Hz |
||
|
Working Environment |
Temperature: 15℃－30℃; Humidity: 30－80％ |
||
|
|
CK Jeans Laser Pro
√ Less Water Usage
√ Reduce pollution
√ High Quality and Productivity |
|
Paper samples |
|
Machine Features |
|
|
High power 550W/700W RF laser tube With 17 experience in laser industry, we can offer the high power laser source with stable average laser power and output solution. |
|
CK all-in-one Super Galvo Platform With the aluminium platform by 4000T one piece die cast, CK Laser develop a dedicated scanhead system for jeans dry process, whisker and hand brush are natural like hand-made. It is a stable, fast and dust-proof scanhead system. |
|
|
|
Image projection positioning system High definition projecting system make jeans positioning easy and visible. |
|
Visual position adjusting system CK Laser develop a dual CCD cameras system for adjust laser design size and position to match the jeans. It can reduce operational time when customer has many different size jeans orders. |
|
|
About CK Laser |
Found in 2006, CK Laser is one of the leading galvo laser machine manufacturer in China. We have R&D team for laser source, galvo head, control system&software, mechanical system. Over 15 years continuously technical investment, CK Laser has gained more than 80 patents in hardware and software. That makes our product distinguished.
