Stain Steel Laser Marking Machine

3D Fiber Laser Marking Cutting Marking Engraving Machine adopts the most advantages fiber laser source and high quality galva scanning system. It can provide stable power output, perfect optical mode, good beam quality and high speed marking, so you can get a perfect effect and high efficiency, which can fulfill massive production.

Send Inquiry

Product Introduction

Should you're in looking for the stain steel laser marking machine, welcome to buy the quality 3D vendor with our professional manufacturers and suppliers. We will offer you reasonable price and satisfactory service.

3D Fiber Laser Stain steel laser marking machine

About CKlaser

Staff

170 employees, 30 engineers in R&D, cooperates with 2 universities

Experience

Founded for 11 years, exported countries more than 30

Achievement

50 certificates of patent, 10000+ total capacity

Video Show

Advanced 3D control technology---- Z Axis focus compensation

Mark on cylinder Mark on slope

Mark on different surface Mark on cone

Equipment Description
3 D laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer .
Optical fiber laser marking machine adopts air cooling, marking breadth, outputing the speed
of light with good quality, high reliability, longlife, maintenance free, and can meet the marking
depth, smoothness, high precision requirement.

Main features
1. Using integrated structure,equipped with automatic focus system,operation process.

2. Beam quality is better than the traditional solid laser marking machine,output TEMOO,focusing spot diameter is less than 20 um.

3. CK-FB series adopts famous laser source which has a long service life (≥100,000 hours) up to 2 years warranty.

4. It needs no maintenance , has a long life span, and suitable for bad working environment .

5.Powerful marking software , compatible with Corel draw, AutoCAD, and Photoshop file; support PLT, PCX, DXF, BMP、etc,.SHX、TTF font can be directly used ; Support automatic code, serial number, batch number, date printing, bar code, two-dimensional code, automatic jump number, etc.

Parameter

Model	CK-FB3D
output power	20W 、30W、50W、60W、70W、100W (Optional）
Pulse Repetition Rate	20kHz-200kHz（IPG）/ 1~400KHZ(JPT)
beam quality ㎡	<2
Depth of engraving（based on material）	<0.3mm
Gross Power	600W
Operating voltage	AC 220V/110V 50/60HZ 5A
Laser wavelength	1064nm
engraving range	100×100×40mm、160×160×40mm、300×300×40mm
Repetition precision	±0.003mm
Engraving speed	8000mm/s
Minimum line width	0.01mm
Marking method	stationary Marking,Flying Marking,Rotary Marking
Character size	0.5-110mm
Cooling System	Air Cooling
Direction of Installing equipment	Any
Cable Length	3m （ 5m optional）
Voltage Class	Ⅱ
Class of pollution	2
Working Temperature Range	10-30℃
Working Humidity	20%-80%
Net Weight of machine	40kg
Dimension of Main Body（L×W×H）	1030mm×720mm×420mm

Application Area

Applicable Industries:It is widely used in industries that produces mobile phone keys, translucent plastic keys , electronic components , integrated circuit （IC）, electrical appliances , communication products , sanitary ware , tool parts,
knives , watches ,glasses, jewellery, auto accessories, luggage buckles, cooking utensils, stainless steel products.

Applicable materials:All kinds of metal (with rare metal), engineering plastics , electroplating materials,the coating materials, spraying materials , plastic and rubber , epoxy resin, ceramics, and other materials

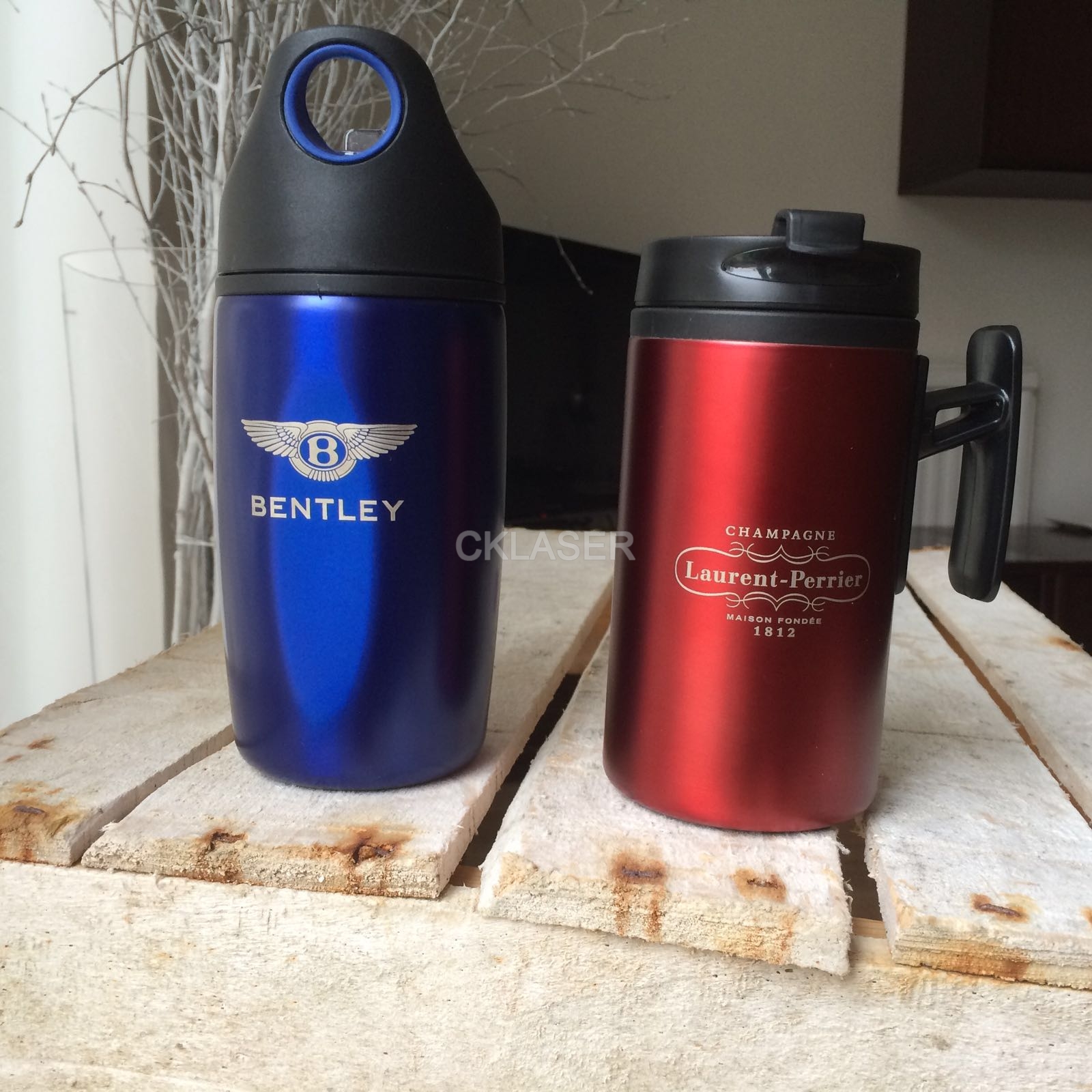

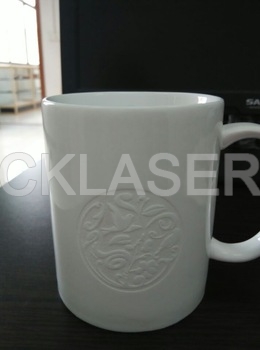

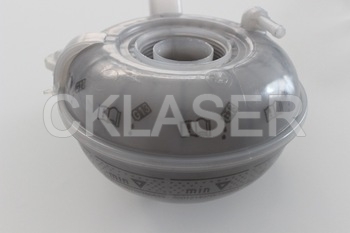

Samples
