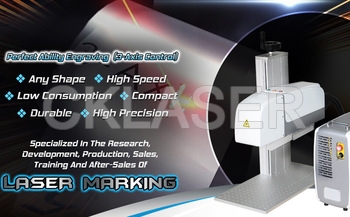

3D Laser Printer
3 D laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer .
Optical fiber laser marking machine adopts air cooling, marking breadth, outputing the speed
of light with good quality, high reliability, longlife, maintenance free, and can meet the marking
depth, smoothness, high precision requirement.
Send Inquiry
Product Introduction
Should you're in looking for the 3d laser printer, welcome to buy the quality 3D vendor with our professional manufacturers and suppliers. We will offer you reasonable price and satisfactory service.

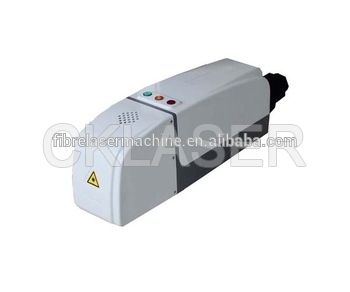

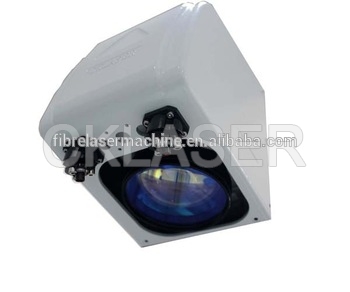

3D laser printer

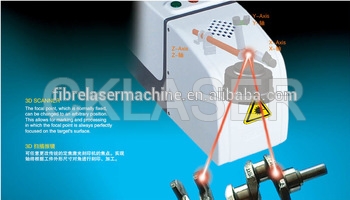

Advanced 3D control technology---- Z Axis focus compensation

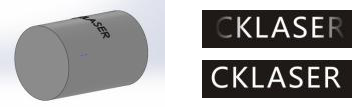

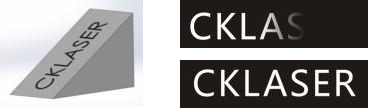

Mark on cylinder Mark on slope

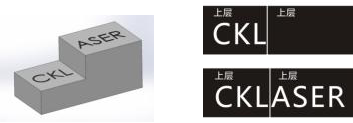

Mark on different surface Mark on cone
Equipment Description
3 D laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer .
Optical fiber laser marking machine adopts air cooling, marking breadth, outputing the speed
of light with good quality, high reliability, longlife, maintenance free, and can meet the marking
depth, smoothness, high precision requirement.
Main features
1. Using integrated structure,equipped with automatic focus system,operation process.
2. Beam quality is better than the traditional solid laser marking machine,output TEMOO,focusing spot diameter is less than 20 um.
3. CK-FB series adopts famous laser source which has a long service life (≥100,000 hours) up to 2 years warranty.
4. It needs no maintenance , has a long life span, and suitable for bad working environment .
5.Powerful marking software , compatible with Corel draw, AutoCAD, and Photoshop file; support PLT, PCX, DXF, BMP、etc,.SHX、TTF font can be directly used ; Support automatic code, serial number, batch number, date printing, bar code, two-dimensional code, automatic jump number, etc.
Parameter
Application Area
Applicable Industries:It is widely used in industries that produces mobile phone keys, translucent plastic keys , electronic components , integrated circuit （IC）, electrical appliances , communication products , sanitary ware , tool parts,
knives , watches ,glasses, jewellery, auto accessories, luggage buckles, cooking utensils, stainless steel products.
Applicable materials:All kinds of metal (with rare metal), engineering plastics , electroplating materials,the coating materials, spraying materials , plastic and rubber , epoxy resin, ceramics, and other materials

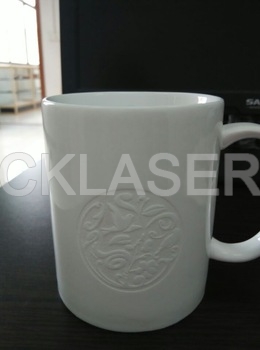

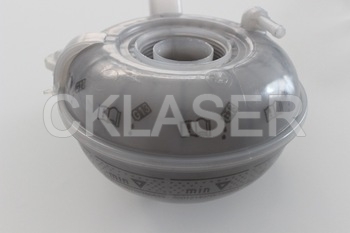

Samples
Equipment Description
3 D laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer .
Optical fiber laser marking machine adopts air cooling, marking breadth, outputing the speed
of light with good quality, high reliability, longlife, maintenance free, and can meet the marking
depth, smoothness, high precision requirement.
Main features
1. Using integrated structure,equipped with automatic focus system,operation process.
2. Beam quality is better than the traditional solid laser marking machine,output TEMOO,focusing spot diameter is less than 20 um.
3. CK-FB series adopts famous laser source which has a long service life (≥100,000 hours) up to 2 years warranty.
4. It needs no maintenance , has a long life span, and suitable for bad working environment .
5.Powerful marking software , compatible with Corel draw, AutoCAD, and Photoshop file; support PLT, PCX, DXF, BMP、etc,.SHX、TTF font can be directly used ; Support automatic code, serial number, batch number, date printing, bar code, two-dimensional code, automatic jump number, etc.
Parameter
| Model | CK-FB3D |
| output power | 20W 、30W、50W、60W、70W、100W (Optional） |
| Pulse Repetition Rate | 20kHz-200kHz（IPG）/ 1~400KHZ(JPT) |
| beam quality ㎡ | <2 |
Depth of engraving（based on material） | <0.3mm |
| Gross Power | 600W |
| Operating voltage | AC 220V/110V 50/60HZ 5A |
| Laser wavelength | 1064nm |
| engraving range | 100×100×40mm、160×160×40mm、300×300×40mm |
| Repetition precision | ±0.003mm |
| Engraving speed | 8000mm/s |
| Minimum line width | 0.01mm |
| Marking method | stationary Marking,Flying Marking,Rotary Marking |
| Character size | 0.5-110mm |
| Cooling System | Air Cooling |
| Direction of Installing equipment | Any |
| Cable Length | 3m （ 5m optional） |
| Voltage Class | Ⅱ |
| Class of pollution | 2 |
| Working Temperature Range | 10-30℃ |
| Working Humidity | 20%-80% |
| Net Weight of machine | 40kg |
| Dimension of Main Body（L×W×H） | 1030mm×720mm×420mm |
Application Area
Applicable Industries:It is widely used in industries that produces mobile phone keys, translucent plastic keys , electronic components , integrated circuit （IC）, electrical appliances , communication products , sanitary ware , tool parts,
knives , watches ,glasses, jewellery, auto accessories, luggage buckles, cooking utensils, stainless steel products.
Applicable materials:All kinds of metal (with rare metal), engineering plastics , electroplating materials,the coating materials, spraying materials , plastic and rubber , epoxy resin, ceramics, and other materials
Samples
