CO2 LGP marking Machine

CO2 LGP marking Machine

Equipment Decription

The performance of LGP marking machine made by us is stable, maintenance free, suitable for high volume, multi varieties, high speed, high precision and continuous production of industrial processing site. It is widely used in LCD backlight, ultra-thin advertising light box, x-ray viewer for medical purpose , flat plate type of lighting equipment, etc.

Core advatages
The advantages of LGP is ultra thin, extremely bright, light guiding evenly, energy efficient, environmentally friendly, durable, no dark space, no yellowish color, easy installation and maintenance, and so on.

It can efficiently convert point source and line source to surface source. This production is the lastest achievement which integrate advanced technology of optics and materials science together, row materials fully adopted acrylic materials

Main features
1.It uses thin materials to save cost;
2.High luminous efficiency;
3.Light uniformity, the outlet line are reasonably generated by professional optical software Light-Tools(thin in edge,dense in center). Makes the brightness uniformity to maximize, basically uniformity can be reached by more than 9o%;
4.Durable, does not turn yellowish easily, long life span, normally can be used more than 8 years in door.
5. It is not affected by water and moisture;
6. Simple technique, high flexibility, the size of the plate can be changed according to customer's requirement. The sample can be finished in short time with low cost.
7. Laser marking is on a low requirement to the smoothness of plate,there is no negative effect if an error on the surface of plate is not more than 5 mm, this isn't acceptable for printing.

Product parameter

Technology para	LGP introduction	LGP standard	LGP advanced
laser
Laser type (lowest)	Sealed-type CO2 laser, RF strongly(wavelength:10.6um)
Average power	150W	275W	275W
Peak power	298W	450W	450W
Laser class	4
Laser wavelength	10640nm
Pulse frequency	0~130KHz
Function
Marking speed (Max)	1500 dots/s	2200 dots/s	3000 dots/s
Diameter of hole for laser beam	20	25	30
Boot-strap methods	One-key power on, detect system automatically
Focus features	3D dynamic focusing
Folder cavity	Optical path optimization designed, the optical quality is better
Digital scanning	High precision, high speed of anti temperature-drift,and good anti-jamming ability, big marking area
Marking performance
Max marking range (standard)	800*800mm	800*800mm:1200-1200mm
Focusing point sizes (standard)	0.28mm	0.30mm
Spot size(R)	0.2~0.8mm	0.2~1.2mm	0.15~1.0mm

Applicable industries
It is widely used in LCD backlight, ultra-thin advertising light box, x-ray viewer for medical purpose, flat plate type of lighting equipment, etc.

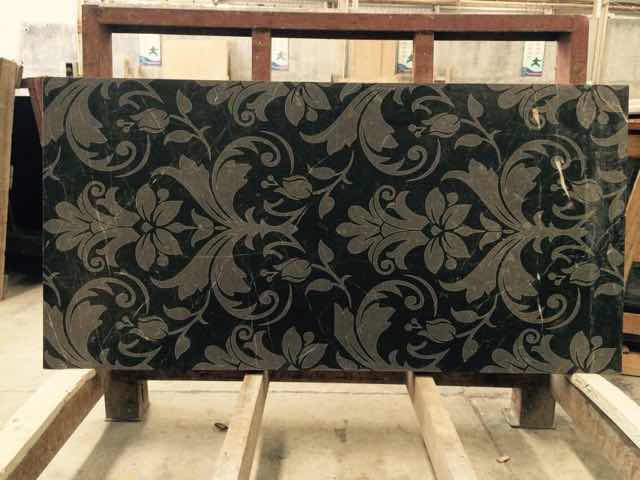

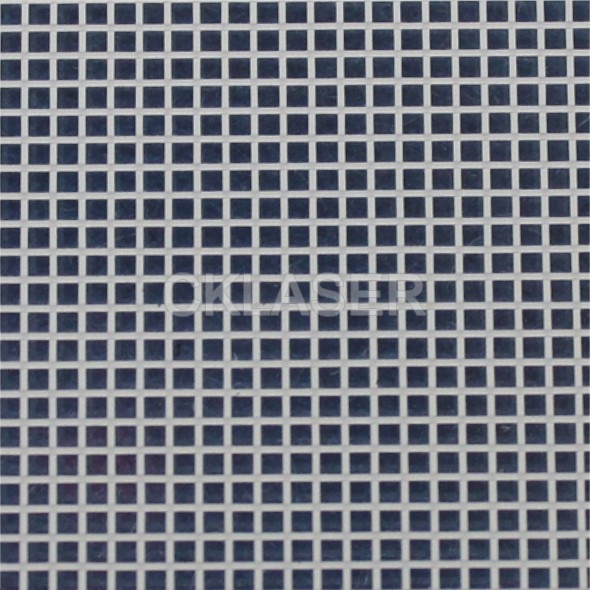

Samples
