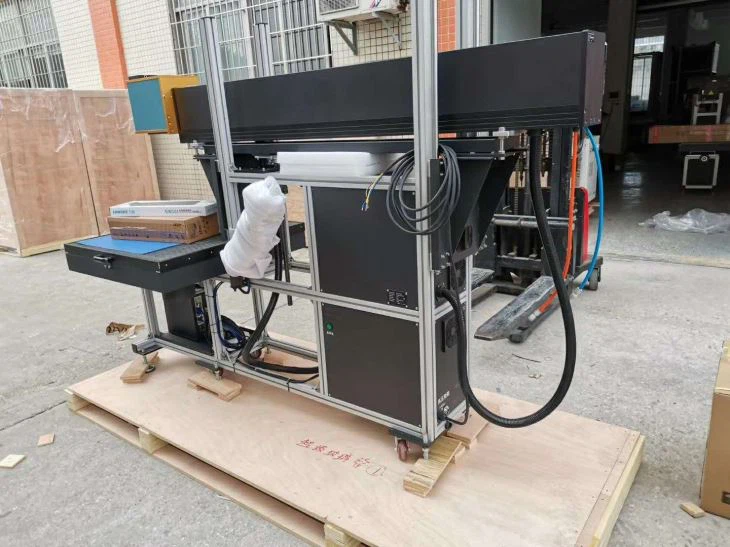

Co2 Laser Machine Engraving On Wood
Co2 Laser Machine Engraving On Wood
Co2 Laser Machine Engraving On Wood
Co2 Laser Machine Engraving On Wood

Co2 Laser Machine Engraving On Wood

Co2 Laser machi engraving on wood is characterized by good beam pattern, stable-performance system and maintenance free.It is appropriate to be used in industrial processing sites with high-volume,variety,high-speed and high-precision continuous production.

Send Inquiry

Product Introduction

Co2 Laser machine engraving on wood

About CKlaser

Staff

170 employees, 30 engineers in R&D, cooperates with 2 universities

Experience

Founded for 11 years, exported countries more than 30

Achievement

50 certificates of patent, 10000+ total capacity

Video Show

Equipment Description

(Co2 Laser machine engraving on wood )CO2 series of non-metallic laser marking machine is controlling by the computer,Co2 Laser engraving on wood machine applies 10640nm laser beam to act on the surfaces the predetermined trajectory through beam expansion, focusing and finally controlling the deflection of galvanometer to gasify the surface and achieve engraving effects.

Production Parameter

Model	CK BL 100
Laser power	100W
Laser source	Chinese
Wavelength	10640nm
Galvanometer	CK
Pulse frequency	0-130KHZ
Marking range	400mm×400mm～800mm×800mm（adjustable）
Computer	DELLcomputer19 inch
Operation system	Windows XP ,win 7 win 10
Locate system	Red light positioning
Voltage	220VAC/10A/50-60HZ
Maximum power	3500W
Cooling system	Constant temperature cooling unit
Working environment	Temperature15-30℃/humidity30-80%

CO2 laser machine

Main Feature

1. 3 axis dynamic system, large marking range, more precise light spot diameter.

2. Long and stable working time.

3. Faster processing speed, sharper and smooth cutting edge.

4. Even processing effects, there is no defocus phenomenon

5. Smaller focus spot,higher power density which can make engraving, cutting, punching more precision.

6. Adopted advanced cooling system

7. With Surepulse’s function, the peak power can up to 6 times,the power output by every pulse can keep constant

8. With optic corrective system, beam quality is excellent,K>0.8（M2<1.2),beam divergent angle <2.5mrad (when transmission distance within 1-10 meters),beam ovality <1.1:1

Sample by Co2 Laser machine engraving on wood

Wood box engraving
