Co2 Laser Machine Engraving On PET
Co2 Laser Machine Engraving On PET
Co2 Laser Machine Engraving On PET
Co2 Laser Machine Engraving On PET

Co2 Laser Machine Engraving On PET

Co2 Laser Machine Engraving On PET which is the latest new process for garments area .It can reach some different special customer needs ,according to market needs or the trade needs to develop new design or new fashion by laser machine .

Send Inquiry

Product Introduction

Co2 Laser Machine Engraving On PET

Equipment Description

Co2 Laser Machine Engraving On PET which is attach with CK fast galvo head ,3D dynamic system and it can use RF tube ,it could enlarge the working area base on the 600mmx600mm

Video Show

Advantage

1: Import laser source

2:Fast 3D galvo head ,dynamic system

3:Smart control system and easy to use

4: Best hardware installation ,stable, reliable

Production Parameter

Model	CK3D-LEG180
Laser power	180W
Laser source	Imported from German or America.
Wavelength	10640nm
Galvanometer	CK galvo
Pulse frequency	0-130KHZ
Marking range	380mm×380mm～650mm×650mm（adjustable）
Computer	DELLcomputer19 inch
Operation system	Windows XP
Locate system	Red light positioning
Voltage	220VAC/10A/50-60HZ
Maximum power	4500W
Cooling system	Constant temperature cooling unit
Working environment	Temperature15-30℃/humidity30-80%

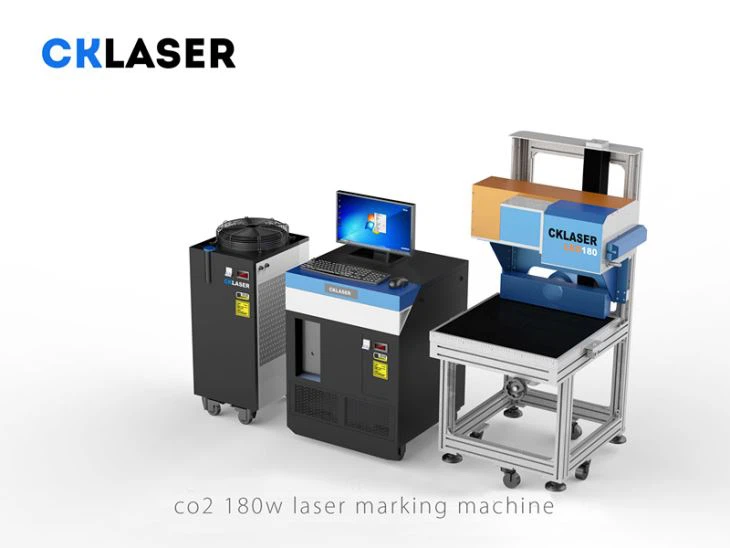

3D 180W CO2 laser marking machine

Main Feature

1. 3 axis dynamic system, large marking range, more precise light spot diameter.

2. Long and stable working time.

3. Faster processing speed, sharper and smooth cutting edge.

4. Even processing effects, there is no defocus phenomenon

5. Smaller focus spot,higher power density which can make engraving, cutting, punching more precision.

6. Adopted advanced cooling system

7. With Surepulse’s function, the peak power can up to 6 times,the power output by every pulse can keep constant

8. With optic corrective system, beam quality is excellent,K>0.8（M2<1.2),beam divergent angle <2.5mrad (when transmission distance within 1-10 meters),beam ovality <1.1:1

Service

1:24hours online support

2:Offer best engineer to support when customer need help

3: Large parts in stock , no delay for replacement

4:Fast repair department ,which can fix the return part by 3days
