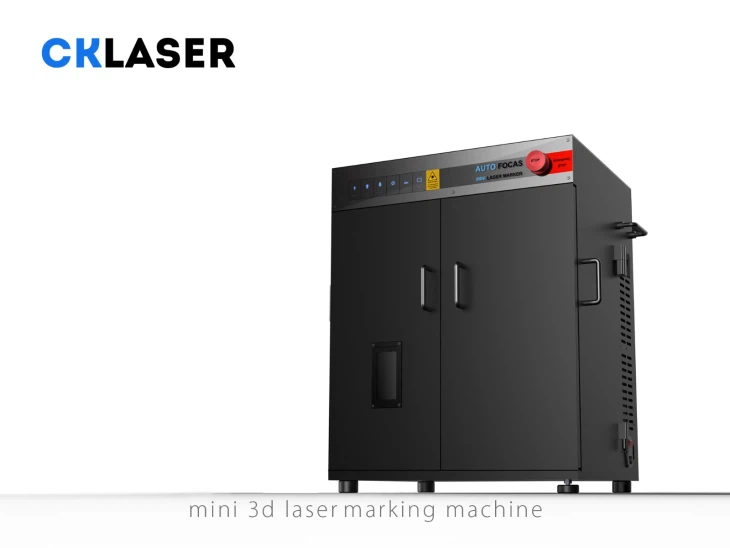

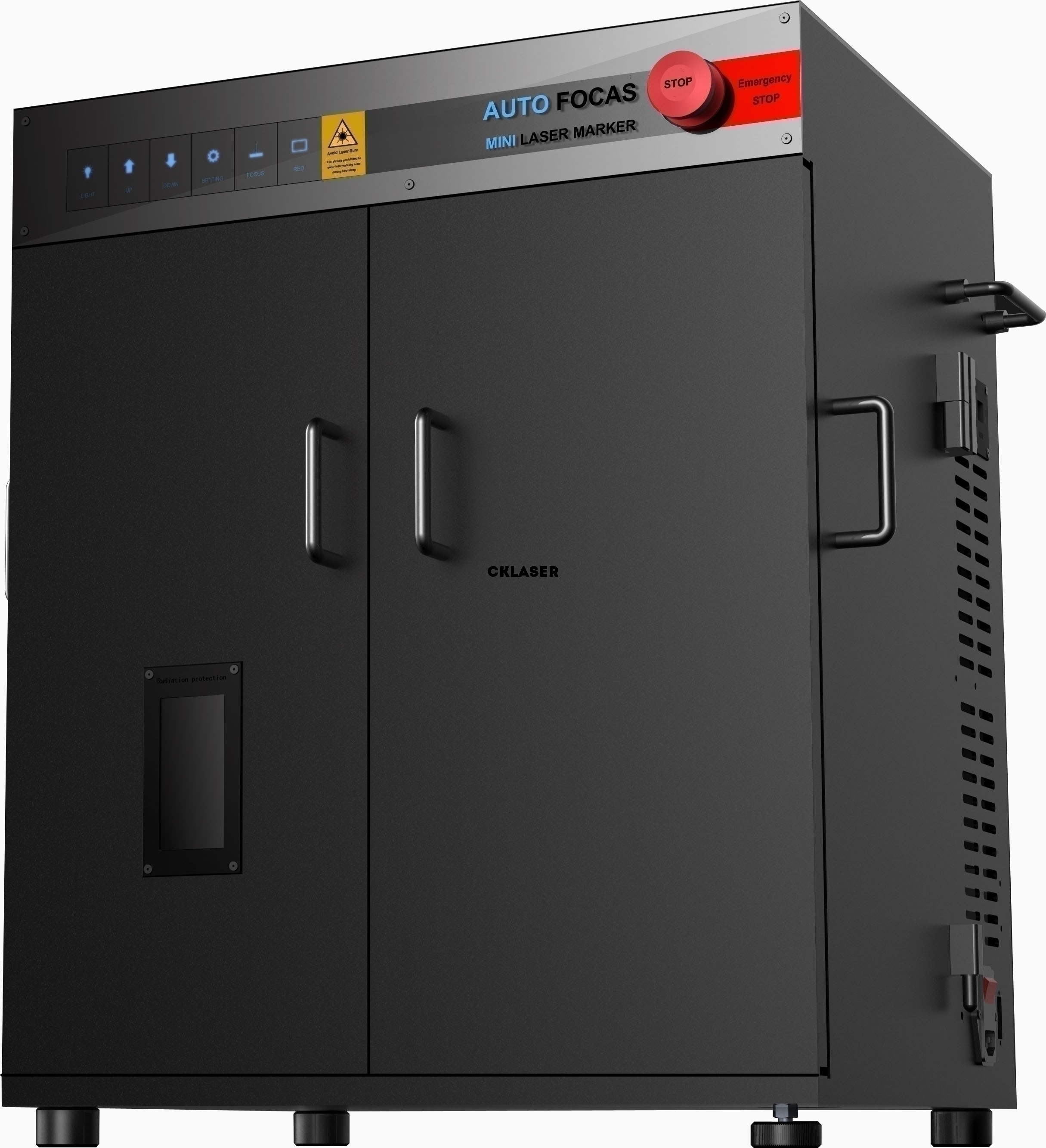

3D Mini Fiber Laser Marking Machine

3D Mini Fiber Laser Marking Machine

Introduction
MINI desktop laser marking machine is portable , flexible, multifunctional, it brings you a different processing experience.

The advantages of 3D Mini Fiber Laser Marking Machine is as follows: Mini size, easy operation, no consumable materials,needs no maintenance, enables uninterrupted flow of work hence meeting the demand of continues industrial work.

Product parameters

Product features

Unique design
1.Integrated design, easy to move, can be placed on desktop or any flat surface.
2.Large processing range, the available processing range is 110*110mm-200*200mm optional
3.High light LED floodlight can light the whole working space/area.
4.Active ramovable door design is conenvient to utilize.

5.Button controls motor goes up and down automatically to adjust marking height.
6.Auto focus:Placing target articles in working platform, then pressing a red light button, machine can sense the best focal length in articles and adjust the lifting platform to go up and down automatically, to realize the function of auto focus.
7.3D function: the 3D function can realize the function of marking on curve and relief, etc.


Expandability
Two side doors are removable, auto device can be added to meet customers needs.
For example:rotary、disk、linar guide rail

Product paremeters

Product Features

1、Adopting integrated structure with Auto focusing technology, the electric lift, 3D function, auto focus, red light position all can be integrated together into one machine and the operation is humanization.

2、Using the isolators to protect the window of laser source, which can enhance stability and increase its life.

3、Beam quality is much better than traditional solid-state laser marking machine ,adopted fundamental mode (TEM00) output, the diameter of focusing spot is less than20um . Divergence angle is quarter of semiconductor pump . It is very suitable for precise marking.

4、High electro-optical conversion efficiency . The gross power less than 600W is a tenth of lamp pumped solid laser marking machine, greatly saved energy .

5、No need any maintenance, long life, small volume, suit for working in atrocious conditions.

6、High marking speed, It is 2-3 times than traditional marking machine .

7、Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop etc; Support PLT,PCX, DXF, BMP format and so on; can use of the SHX, TTF font directly ;support automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.



Samples
