Portable Fiber Laser Marking Machine 3D

Portable Fiber Laser Marking Machine 3D

3D laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer.

Product Details

Portable Fiber Laser Marking Machine 3D



About CKlaser

Staff

170 employees, 30 engineers in R&D, cooperates with 2 universities


Experience

Founded for 11 years, exported countries more than 30


Achievement

50 certificates of patent, 10000+ total capacity



Video Show

Equipment Description


Portable Fiber Laser Marking Machine 3D adopts imported core companents, with high-speed, high precise 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem. It can adjust focus length any thime for deep engraving, which make process efficiency and effect much better than the traditional 2D fiber laser marking machine. Our new technology makes 3D marking function come true, leading a new era of laser processing.


Product Parameter

Model

CK3D-FB

output power

20W 、30W、50W、60W、70W、100W (Optional)

Pulse Repetition Rate

20kHz-200kHz(IPG)/ 1~400KHZ(JPT)

beam quality ㎡

<2

Depth of engraving(based on material)

<0.3mm

Gross Power

600W

Operating voltage

AC 220V/110V 50/60HZ 5A

Laser wavelength

1064nm

engraving range

100×100×40mm、160×160×40mm、300×300×40mm

Repetition precision

±0.003mm

Engraving speed

8000mm/s

Minimum line width

0.01mm

Marking method

stationary Marking,Flying Marking,Rotary Marking

Character size

0.5-110mm

Cooling System

Air Cooling

Direction of Installing equipment

Any

Cable Length

3m ( 5m optional)

Voltage Class

Class of pollution

2

Working Temperature Range

10-30℃

Working Humidity

20%-80%

Net Weight of machine

40kg

Dimension of Main Body(L×W×H)

1030mm×720mm×420mm

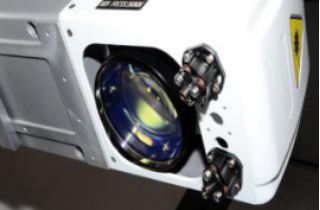

3D Desktop Mopa fiber laser marking machine.png


3D Desktop Mopa fiber laser marking machine.png3D Desktop Mopa fiber laser marking machine.png



Main Feature

1.Subvert traditional 2D marking mode. It can engrave many different 3D shapes, for example: slope, cylinder, cone, ball etc.

2.Amazing huge central angle marking: the max central angle can be reached 117 degree on cylinder.

3.Perfectly present target graphics on work pieces, avoid deforming such as elongation, slope.

4.The border won't be "ignored". Everything is marked uniformly.

5.Details show ingenuity, no matter observing from any angles, it is exquisite,perfect.

6.Simple and easy is better! The software fully developed by ourselves, it is easy to learn and use. What you see is what you get.



Applicable Industries


Portable Fiber Laser Marking Machine 3D is widely used in industries of mobile phone keys, translucent plastic keys, electronic companents,integrated circuit, elecrical appliances, communication products, sanitary ware, knives, watches, luggage buckles, cooking utensils, etc.



Sample by Portable 3D Fiber Laser Marking Machine

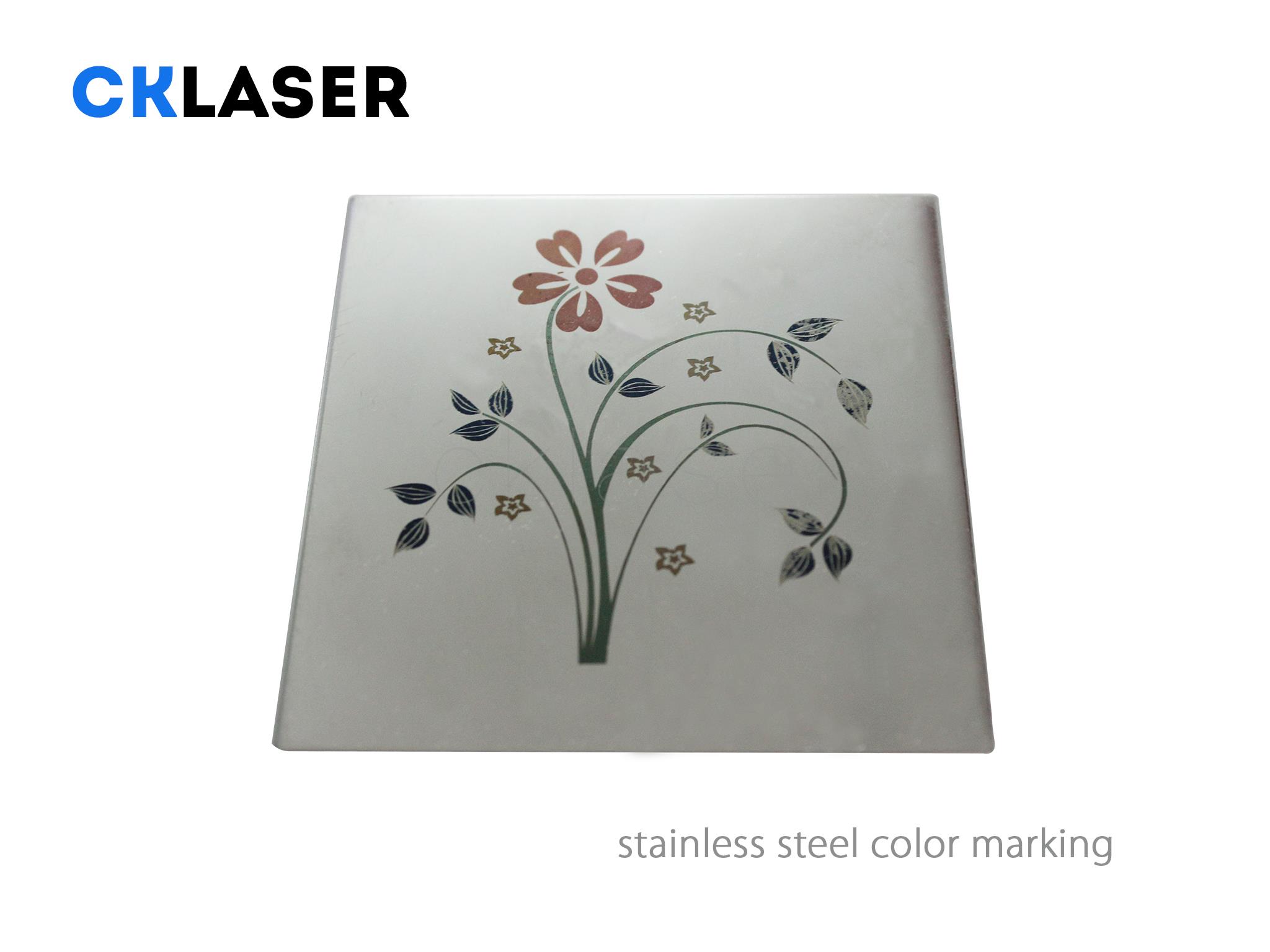

                          mould relief by 3d fiber laser machine.jpg               fiber 3D plastic shell marking.jpg      stainless steel color marking.jpgfiber laser relief marking.jpg



Should you're in looking for the Portable Fiber Laser Marking Machine 3D, welcome to buy the quality 3D vendor with our professional manufacturers and suppliers. We will offer you reasonable price and satisfactory service.
