3D Desktop Optical Fiber Laser Marking Machine

3D Desktop Optical Fiber Laser Marking Machine

Desktable Portable CK3D-FB laser marking machine is an advanced system of the third generation of laser marking machine,which adopt international advanced fiber laser, ultra-fast scanning galvanometer.

Product Details

3D Desktop Optical Fiber Laser Marking Machine



About CKlaser

Staff

170 employees, 30 engineers in R&D, cooperates with 2 universities


Experience

Founded for 11 years, exported countries more than 30


Achievement

50 certificates of patent, 10000+ total capacity



Video Show






Equipment Description

3D Desktop Optical Fiber Laser Marking Machine series portable fiber laser marker  is the third-generation laser marker system. It adopts laser source with advanced international  technology, and high quality galvanometer scanner, output beam quality is fine, and reliability. Air cooling system helps save the power greatly, It is able to be used in some fields with high requirements for deep marking, smoothness and fineness.


Product Parameter


Model

Desktable Portable CK3D-FB

Output Power

20W 、30W、50W、100W (Optional)

Pulse Repetition Rate

20kHz-200kHz

Beam Quality ㎡

<2

Depth of Engraving

<0.3mm(based on material)

Gross Power

400W/500W/600W/1000W

Operating Voltage

AC 220V/110V 50/60HZ 5A

Laser Wavelength

1064nm

Engraving Range

70×70mm/140×140mm/170×170mm/200×200mm/300×300mm

Cooling System

Air Cooling

3D Desktop Optical Fiber Laser Marking Machine.jpg

3D Desktop Optical Fiber Laser Marking Machine.jpg

3D Desktop Optical Fiber Laser Marking Machine .png

3D Desktop Optical Fiber Laser Marking Machine.png

3D Desktop Optical Fiber Laser Marking Machine.png



Main Feature

1.Engrave on different height surface.By the characteristics of 3D laser marking machine, molding  marking by one time can be realized, even the work pieces have height gaps on incline and slope surface.


2.Advanced 3D control technology.CK-FB3D series of 3-Axis control can mark clear image on the different surfaces which traditional 2D laser marking machine can not do.The clear font can be marked on step surface,slope, cylinder,cone and so on.3-Axis engraving technology help processing industry with perfect sollution of font's distortion,missing and fuzzy.


3.Ergonomically designed.CK-FB3D laser marker is designed is according to the requirment of Mechanical Aesthetics and Ergonomics, with fashionable and nice appearance,reasonable structure,lighter weight.This kind of design is able to make the install process conveniently


4.Mold manufacture.The hull of device adopts mold technology, the machien structure is integrated to increase bigger working space, it's easy and comfortable to operate and control the machine.


5.Auto focus function. the unique auto-induction foci system can recognize the place of work surface and focus rapidly and automatically,it improves the processing efficiency greatly.


Applicable Industries

It's widely used in industries of mobile phone keys, translucent plastic keys, electronic companents,integrated circuit, elecrical appliances, communication products, sanitary ware, knives, watches, luggage buckles, cooking utensils, etc.



Samples by 3D Desktop Optical Fiber Laser Marking Machine

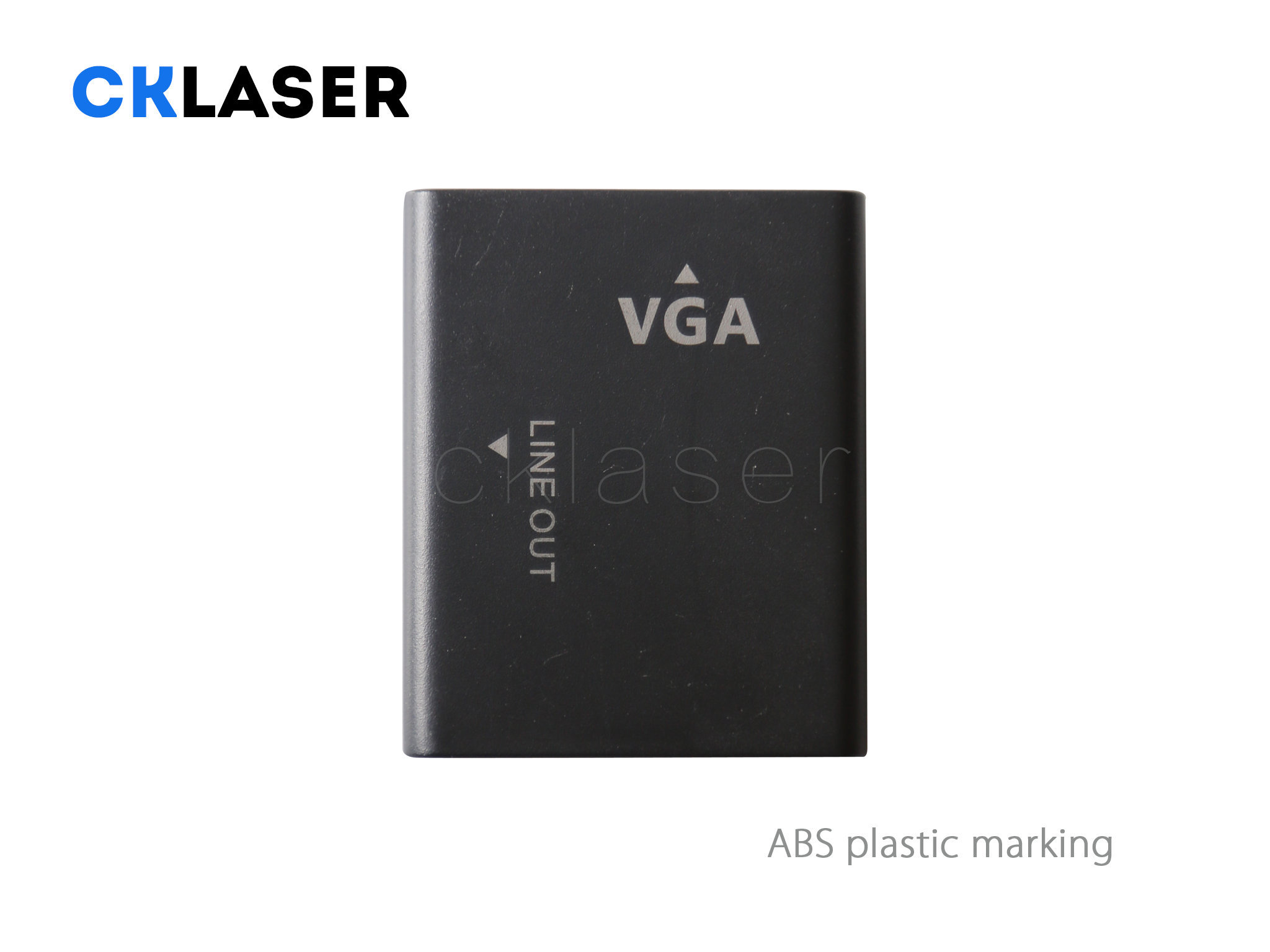

ABS plastic marking.jpgmarking white on PCB.jpgstainless steel color marking.jpgfiber laser 3D lamp holder marking.jpg


Should you're in looking for the 3D Desktop Optical Fiber Laser Marking Machine, welcome to buy the quality 3D vendor with our professional manufacturers and suppliers. We will offer you reasonable price and satisfactory service.
Hot Tags: 3D Desktop Optical Fiber Laser Marking Machine, manufactures, suppliers, vendor, price, 3D
