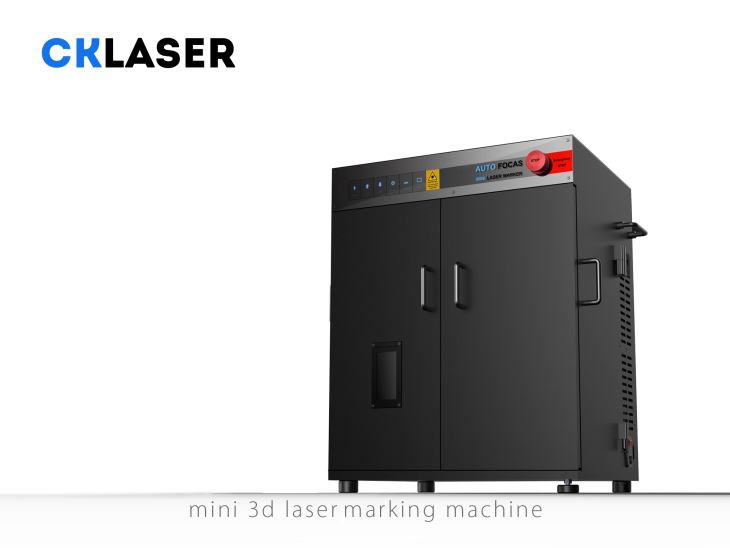

Desktop Mini Fiber Laser Marking Machine 20W

Desktop Mini Fiber Laser Marking Machine 20W

MINI desktop laser machine is portable, flexible and multifunctional. It brings you a different process experience. It adopts the domestic top fiber laser source and high-quality scanning system. Fashion design, easy operation, partable doors, auto-focus...

Product Details

Desktop Mini Fiber Laser Marking Machine 20W


About CKLASER

Staff

170 employees, 30 engineers in R&D, cooperates with 2 universities


Experience

Founded for 11 years, exported countries more than 30


Achievement

50 certificates of patent, 10000+ total capacity

fiber laser engraver Vendor


Video Show






Equipment Description

CK2D-MINI fiber laser marking machine has compact structure, reduce machine weight, intruduce our customer a fantastic experience, adopting high quality laser source and most advanced international galvo scanner , the output power is steady, its optical beam mode is quite fine and optical beam is super precise. Processing speed is fast, it provides working efficiency.


Product  Parameters


ModelCK2D-MINI
Laser power
20W/30W/50W(optional)
Wavelength
1064nm

Body size

500mm×450mm×685mm
Environment requirement
Ambient temperature15-35℃/humidity 30-80%
Marking range
110mm×110mm-200mm×200mm(optional)
Repeating frequency
1K-400KHZ/20k-200khz
Mini line width
0.01mm
speed
≦10000mm/s
Cooling system
Air cooling
voltage
110V/220V   50HZ/60HZ
Gross power
400w/500w
Max Pulse Energy
0.66 mJ


laser engraving machines Vendor.pnglaser engraving machines Vendor.png

Auto lifting fiber laser marking machine.png

Auto lifting fiber laser marking machine.pngAuto lifting fiber laser marking machine.png

Auto lifting fiber laser marking machine.pngAuto lifting fiber laser marking machine.png

Auto lifting fiber laser marking machine.JPG




Product Features

1.Adopting integrated structure with Auto focusing technology, the electric lift, red light position all can be integrated together into one machine and the operation is humanized. This desktop laser machine saves storage space, its size is 500mm×450mm×685mm.

2.Using protective window to isolate the laser source, which can enhance stability and increase its life.

3.Beam quality is much better than traditional solid-state laser marking machine, adopted fundamental mode (TEM00) output, the diameter of focusing spot is less than 20um. Divergence angle is quarter of semiconductor pump . It is very suitable for precise marking.

4.High efficient electron optics conversion electro-optical conversion efficiency. The gross power is less than 600W which is the tenth of solid state laser marking machine, energy-saving.

5.No need any maintenance, long life, small volume, it's suitable for working in atrocious conditions.

6.This fiber laser cutting machine with high marking speed, it is 2~3 times than traditional marking machine.

7.Powerful marking software. It is compatible with the software coreldraw, AutoCAD, Photoshop etc; also support PLT,PCX, DXF, BMP format and so on;  and  SHX, TTF font directly ;support serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.

8.cklaser machines offer one year warranty, everything is governed by the sales contract.



Applicable Industries

A wide applicable industries in cellphone buttons, plastic buttons,electronic components,integrated circuits, electronical appliances, communication products, sanitary ware products, tool components, knives, glass, jewelries, automotive components,suitcase, etc.




Samples by                                  Desktop Mini Fiber Laser Marking Machine 20W
                         stainless steel marking.jpg
                       stainless steel color marking.jpg                                    alumina marking white.jpg

Should you're in looking for the Desktop Mini Fiber Laser Marking Machine 20W, welcome to buy the quality 3D vendor with our professional manufacturers and suppliers. We will offer you reasonable price and satisfactory service.
